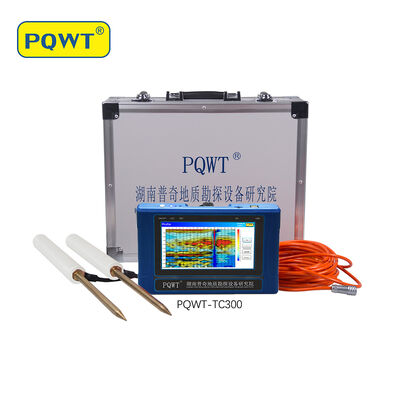

PQWT TC300 300m Long Range High Accuracy Portable Detector Water Detection
شرح
فرکانس عملیاتی:
چند فرکانس
حساسیت:
دیگر
تایپ کنید:
برای ابزارهای بررسی آب
کاربر:
بزرگسالان
پشتیبانی سفارشی:
OEM
رتبه بندی IP:
N/A
مواد:
N/A
قطر سیم پیچ را جستجو کنید:
N/A
گارانتی:
2 سال
مدل شماره:
آشکارساز آب زیرزمینی PQWT-TC300
عمق اندازه گیری:
300 متر آب یاب
محدوده تبدیل اتوماتیک ابزار:
0mv-2000mv
دقت اندازه گیری:
0.01mv
فرکانس:
باند تک ، باند سه گانه ، فرکانس چندگانه
اندازه LCD:
صفحه نمایش لمسی 7 اینچی HD
تبدیل A/D:
12 بیتی 1msps
امپدانس ورودی:
GE 10mΩ
منبع تغذیه:
باتری داخلی 4000 میلی آمپر ساعتی
وب سایت Offical:
www.pqwtcs.com
برجسته کردن:
PQWT TC300 water detector 300m range,portable water detector high accuracy,PQWT water detector with warranty
,
portable water detector high accuracy
,
PQWT water detector with warranty
300m Long Range High Accuracy Portable water Detector water detection
We have water detector for the different depth 100/150/300/500/600/1200/1500m.
If you need more product information, please contact wechat/whatsapp 00 8618817121520
Product Description
The advantage of PQWT-TC300. 300meters water detection
1. Be suitable for plain, hill, mountain land, highland, basin all kinds of geologic structure application;
2. Automatic mapping in the instrument, get drilling position and depth result at site.
3. Professional user group offers 24 hours after sale service.
4. The average accuracy of more than 90% from user’s feedback.
5. Four languages including English/Spanish/French/Arabic are optional.
6. It is widely used for drinking water, agricultural irrigation water detection.
7. Non-professionals can learn the operation way in 5 minutes.
8. Only 1-2 people can operate.
9. Two years warranty.

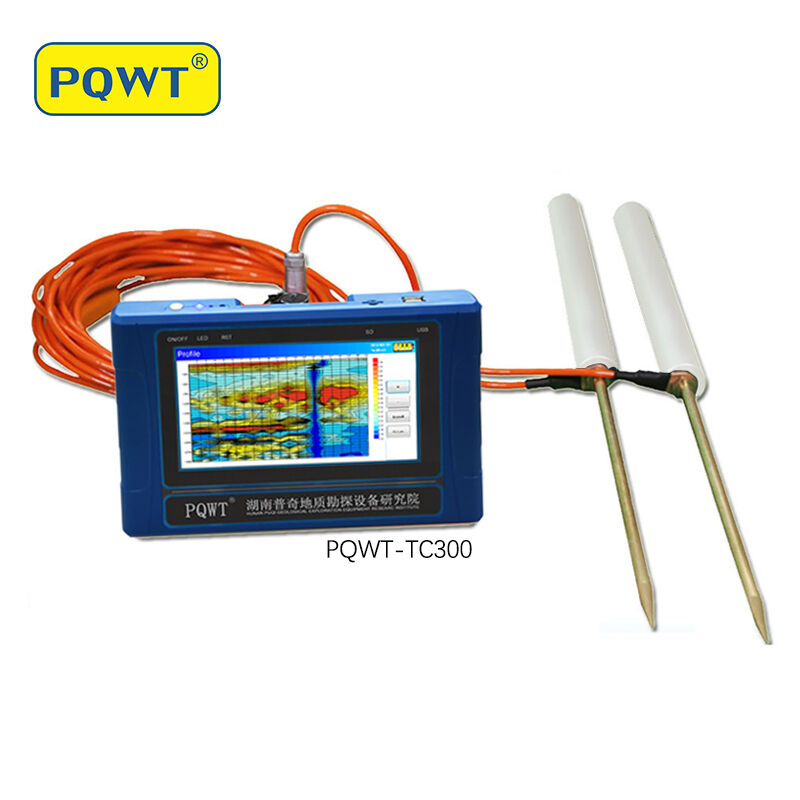

PQWT-TC300.300M deep underground water detector
The Instrument called as (Natural Electric Field Frequency Selection System) geophysical instrument, shortly known as frequency system.
Instrument working on the principle of electrical difference of natural earth magnetic field, the several different frequencies of electromagnetic field changes is the law to study the underground field material changes to solve the Geological problems.
The measurement data is Self-potential, and the unit is millivolt.
Model
PQWT-TC300
Depth
300 Meters
Frequency
Single, Triple, 40frequency
Channel
6
System
PQWT
LCD
Industrial 7-inch HD touchscreen
Units of Measurement
Vs(mV)
MeasurementRange
0mV-1500mV
Stand-by Time
8-10 hours
Power Supply
Battery Model #26650;
3.7V 4000mAh Rechargeable lithium battery
Is it difficult to operate and make the graph?
The instrument is easy to operate, you can find the share how-to video on Youtube
, and we will send you the detailed operation manual via email. If you have some basis of computer operating, generally it only needs 2hour to manage it.
300m Long Range High Accuracy Portable Gold Mine Detector water detection
